• Country
• Italy

• Manufacturer / Brand
• Europhon; Milano

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115521

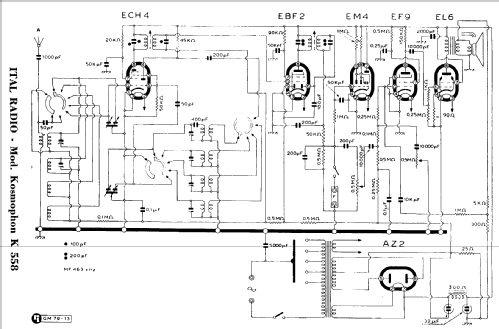

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EBF2 EL3 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 463 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kosmophon K558 Serie K555 - Europhon; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 795 x 380 x 300 mm / 31.3 x 15 x 11.8 inch

• Notes
• Altoparlante mod. Lea Torino 121.21 Trasf. 6V6 eccitt. 1200 ohm. La scala parlante porta la dicitura KOSMOPHON K.558 è dotato oltre di prese antenna e terra, una presa fono.

• Net weight (2.2 lb = 1 kg)
• 17.3 kg / 38 lb 1.7 oz (38.106 lb)

• Source of data
• - - Data from my own collection
