• Country
• Germany

• Manufacturer / Brand
• Euratele, Radio-Fernlehrinstitut GmbH; Köln

• Year
• 1969 ??

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 86085

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM87 ECF80 ECL82 ECL82 EZ81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

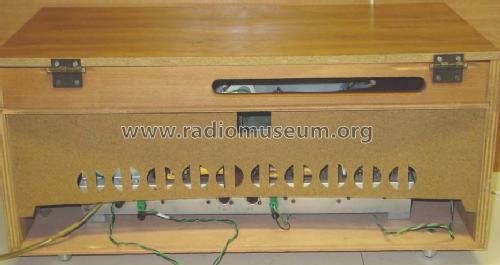

• Model: Selbstbauradio 167 [mit Plattenspieler] - Euratele, Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 290 x 310 mm / 24 x 11.4 x 12.2 inch

• Notes
• Das Radio ist für den Einbau eines Plattenspielers vorgesehen.
  Siehe auch Euratele Selbstbauradio ohne Plattenspieler.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
