Kosmophon KB60 /OM
Europhon; Milano
- Country
- Italy
- Manufacturer / Brand
- Europhon; Milano
- Year
- 1960–1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 334248
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

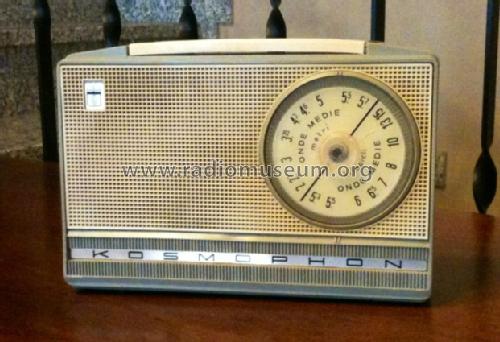

- Model: Kosmophon KB60 /OM - Europhon; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 213 x 145 x 60 mm / 8.4 x 5.7 x 2.4 inch
- Notes
-
controllo volume - antenna interna in ferrite - solo OM - maniglia di trasporto.
Vedi anche Kosmophon KB60 /OM-OC con onde corte aggiuntive
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Author
- Model page created by Wolfgang Gebert. See "Data change" for further contributors.
