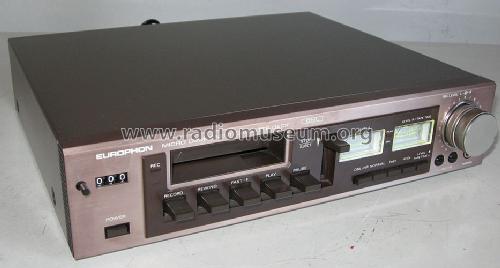

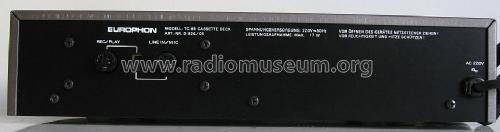

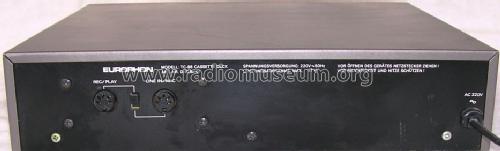

Stereo Cassette Deck TC-88
Europhon; Milano
- Country
- Italy
- Manufacturer / Brand
- Europhon; Milano
- Year
- 1980 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 200389
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 42
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Cassette Deck TC-88 - Europhon; Milano
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 298 x 70 x 249 mm / 11.7 x 2.8 x 9.8 inch
- Notes
-
Geschwindigkeit 4,75 cm/sec. Gleichlaufschwankungen 0,18%. Frequenzbereich Fe 30Hz - 12500Hz. Fe/cr 30Hz - 14000Hz. CrO 30Hz - 14500Hz. Klirrfaktor 2%. Eingangsempfindlichkeit 0,5 mV. Ausgangsspannung 500mV.
- Net weight (2.2 lb = 1 kg)
- 4.4 kg / 9 lb 11.1 oz (9.692 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
