• Country
• Portugal

• Manufacturer / Brand
• Eurorádio; Lisboa

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89397

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

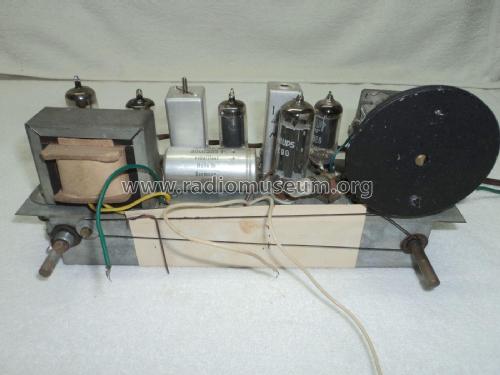

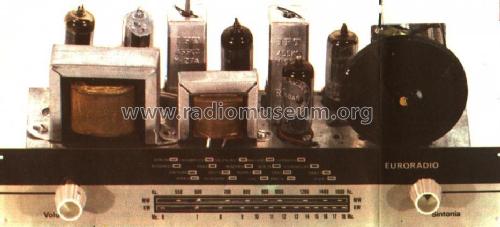

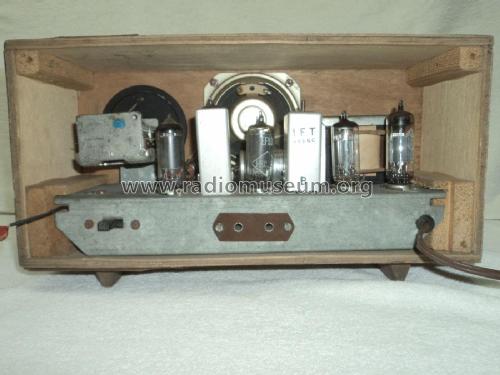

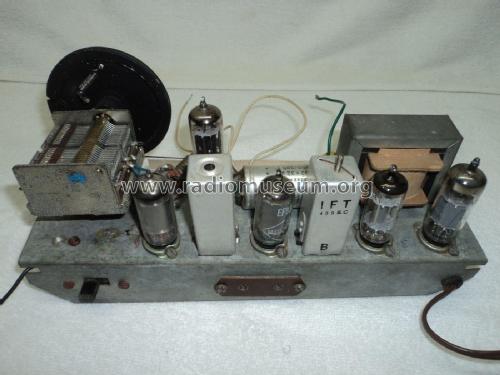

• 6BE6 6BA6 6AT6 EL95 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 2.5 W (3 W max.)

• Material

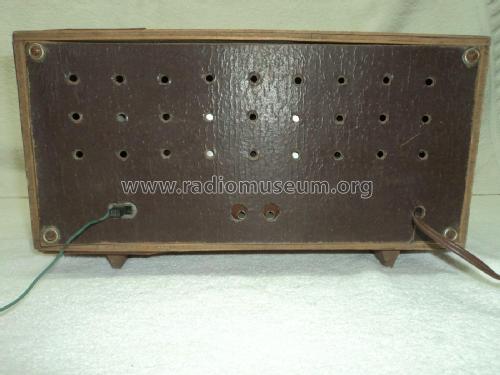

• Wooden case

• from Radiomuseum.org

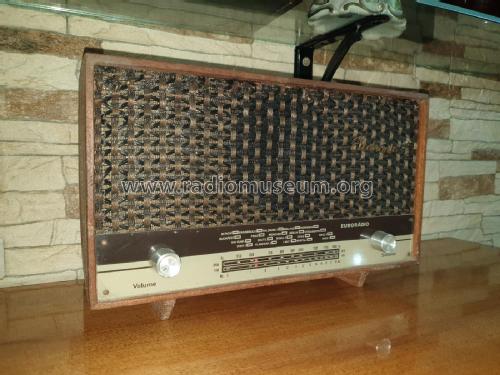

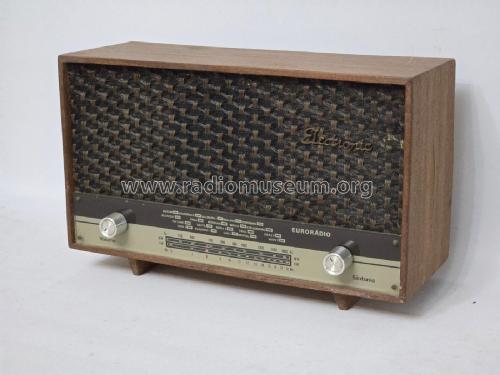

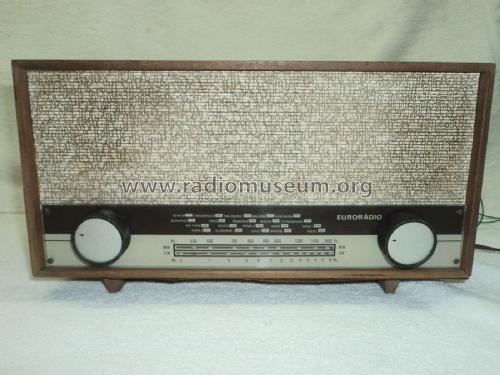

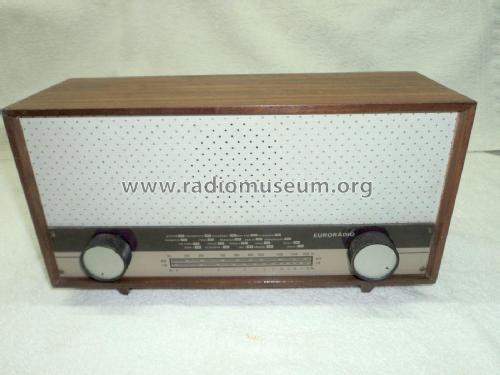

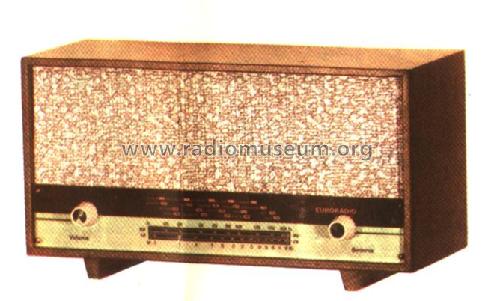

• Model: Euro A59/2 - Eurorádio; Lisboa

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 295 x 160 x 100 mm / 11.6 x 6.3 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
