• Country
• Italy

• Manufacturer / Brand
• Wundercart; Saronno, VA

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146860

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 50B5 35A3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1.3 W (1.9 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

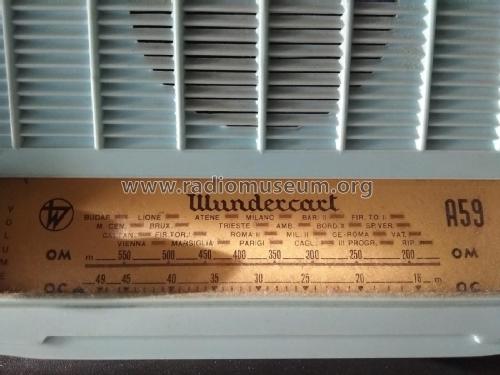

• Model: A59 - Wundercart; Saronno, VA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 255 x 160 x 110 mm / 10 x 6.3 x 4.3 inch

• Notes
• Power supply: Non isolating autotransformer.

• Net weight (2.2 lb = 1 kg)
• 2.150 kg / 4 lb 11.8 oz (4.736 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
