- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ever Ready Co. (GB) Ltd.; London
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223508
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material

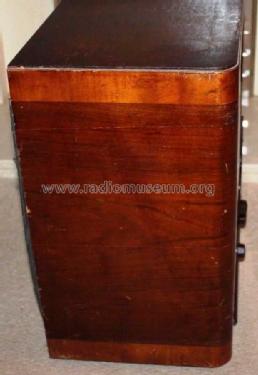

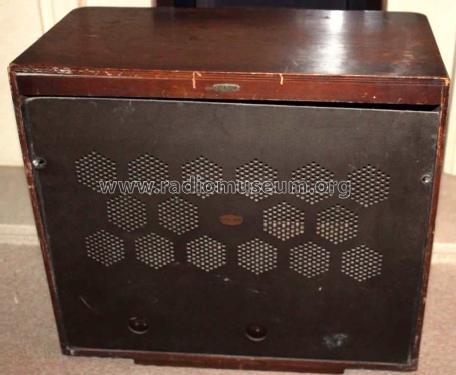

- Wooden case
- from Radiomuseum.org
- Model: 5036 - Ever Ready Co. GB Ltd.; London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- Based on the Lissen 8321 with cosmetic differences.
Dual detector for AGC and audio without a triode section.
- Author
- Model page created by Michael Watterson. See "Data change" for further contributors.
