• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ever Ready Co. (GB) Ltd.; London

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78811

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK1 DF1 DAC1 DL2

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

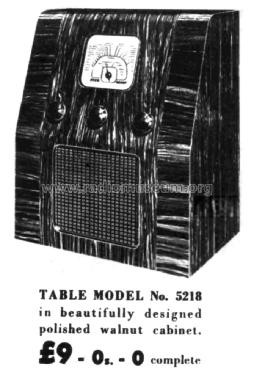

• Model: 5218 [Wood] - Ever Ready Co. GB Ltd.; London

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 14 x 17.5 x 9.5 inch / 356 x 445 x 241 mm

• Notes
• Same chassis as models 5214, 5215, & 5216.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader Sheet 450

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
