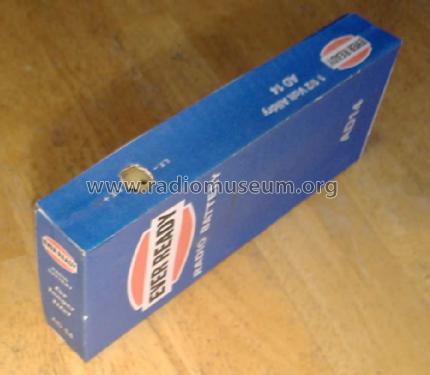

Radio Battery AD14
Ever Ready Co. (GB) Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ever Ready Co. (GB) Ltd.; London
- Year
- 1951 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 155306
Replica
Replica
- Wave bands
- - without
- Power type and voltage
- Is a battery or storage battery / 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Radio Battery AD14 - Ever Ready Co. GB Ltd.; London
- Dimensions (WHD)
- 198 x 38 x 80 mm / 7.8 x 1.5 x 3.1 inch
- Notes
-
LT battery for the Ever Ready Model N and N3.
It would have lasted about 120 hours in N and more than 240 hours in N3 as it was probably 6 x D cells in parallel, Almost exactly three times size of 2 x cell AD35. However 6 x D Cells is approximately the capacity of an AD4 which uses 4 x F Cells. The Pack would need to be a minimum of about 196 x 34 x 92 mm to accommodate F-Cells, one price list has it as 31/8" (about 80mm), if it was 35/8" (1 typeset instead of 5) it would be F cell based. The N & N3 will accomodate a taller pack with F cells (180 to 220 hours for N or 360 to 440 hours for N3).
Earlier versions are called "ALLDRY Radio Low Tension Battery"
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- 1953 Ever Ready Battery Catalog
- Author
- Model page created by Bill Morris. See "Data change" for further contributors.
