• Year
  • 1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 102704

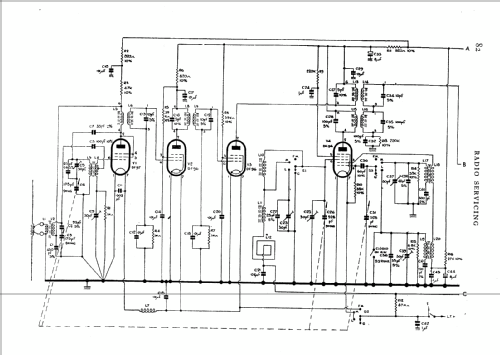

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Storage and/or dry batteries / 1.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sky Monarch AM/FM - Ever Ready Co. GB Ltd.; London
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Push Pull output using a 2nd  DAF96 as phase splitter.

    As of July 2014 at least four surviving examples known of this deluxe table model.

    Serial numbers start with V (The AM only version uses M for Monarch) and in the low four digits.

  • Price in first year of sale
  • 27.50 £(PST)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
