• Country
• United States of America (USA)

• Manufacturer / Brand
• Hardware Merchandising Corp. (Ever-Best); Chicago, IL

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 312666

• Number of Tubes
• 5

• Valves / Tubes
• 14Q7 14A7 14B6 50A5 35Y4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

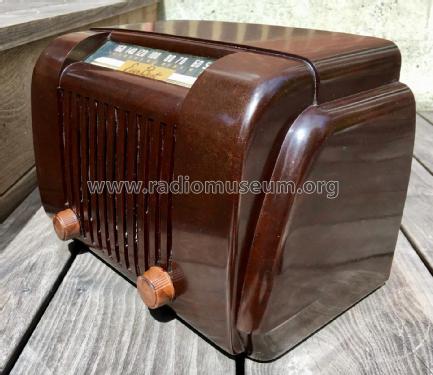

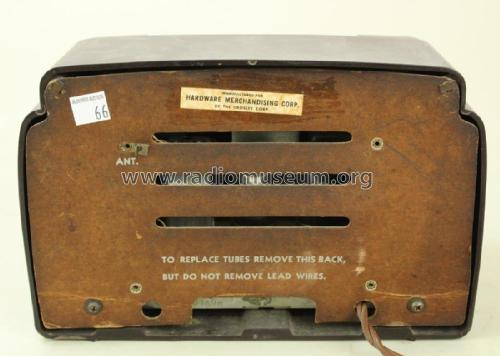

• Model: TA56H - Hardware Merchandising Corp.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.75 x 7 x 6 inch / 273 x 178 x 152 mm

• Notes

• Manufactured by the Crosley Corp. for Hardware Merchandising.

  Similar to Monitor TA-56M.
  See also Crosley 57TK.

• Author
• Model page created by Steve Dymale. See "Data change" for further contributors.
