Portable "A" 744
Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney
- Country
- Australia
- Manufacturer / Brand
- Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney
- Year
- 1958 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 348634
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Portable "A" 744 - Ever-Ready/Eveready Brand in
- Dimensions (WHD)
- 66.7 x 97.6 x 66.7 mm / 2.6 x 3.8 x 2.6 inch
- Notes
-
6V Eveready Carbon Zinc Battery.
Comprised of four No. 60 (ANSI "F") cells in series.
Similar to a Type 509 lantern battery except is slightly shorter and has a socket instead of spring terminals.
- Net weight (2.2 lb = 1 kg)
- 0.624 kg / 1 lb 6 oz (1.374 lb)
- Mentioned in
- - - Manufacturers Literature (Eveready (Australia) Battery Guide.)
- Literature/Schematics (1)

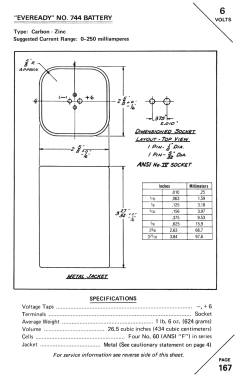

- - - Manufacturers Literature (Eveready Battery Engineering Data, 1976)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
