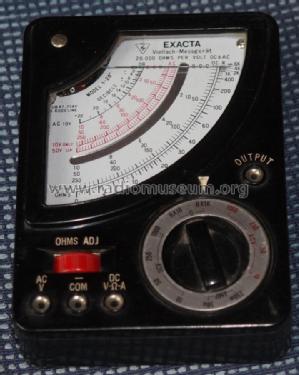

Exacta Multimeter 1-20

PeakTech GmbH, Heinz-Günther Lau (HGL, H.G.L., Exacta); Ahrensburg

Data
Forum
Pictures
Collections

  • Year
  • 1965
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 197381

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Exacta Multimeter 1-20 - PeakTech GmbH, Heinz-Günther
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 115 x 85 x 30 mm / 4.5 x 3.3 x 1.2 inch
  • Notes

  • 20 kOhm/V.
    Messbereiche:
    DC 10 V, 50 V,250 V, 1000 V
    AC 10V, 50 V, 250 V, 1000 V
    A 250 mA, 50 µA
    Ohm 0-60 kOhm 0-1 MOhm
    2 mm Steckbuchsen. 2 Jewels meter.

    Ähnliches Modell:

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Price in first year of sale
  • 28.00 DM
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
