• Country
• United States of America (USA)

• Manufacturer / Brand
• Excel Corp. of America, New York (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152640

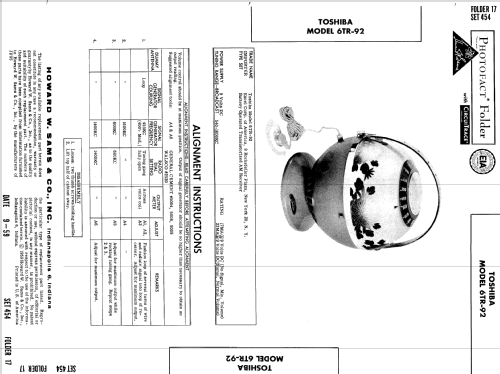

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S12 2S13 2S13 2S14 2S22 2S22

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Toshiba 6TR-92 - Excel Corp. of America, New

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes
• Identical with Japan Toshiba model "6TR-92". See also there.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-59, Set 454, Folder 17)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 8 models, 7 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
