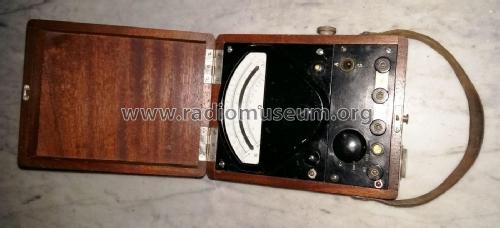

Ohmmeter / Widerstandsmessgerät Internal Battery
Excelsiorwerk; Leipzig
- Country
- Germany
- Manufacturer / Brand
- Excelsiorwerk; Leipzig
- Year
- 1940 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 308142
-
- Brand: Kiesewetter
- Wave bands
- - without
- Power type and voltage
- Batteries / addl. power jack / 3 / 2 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ohmmeter / Widerstandsmessgerät [Internal Battery] - Excelsiorwerk; Leipzig
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 170 x 120 x 210 mm / 6.7 x 4.7 x 8.3 inch
- Notes
-
This instrument is the same of "Widerstandsmessgerät / Ankermesser", but with an internal battery, and in addition the two preexisting clamps to connect an external battery.
On the scale:
I: 0 - infinity x 1000
II: 0 - 1 x 10
III: 0 - 100
IV: 0 - 1000Switch four position: 0; 1; 10; 100
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
