- Country
- Italy
- Manufacturer / Brand
- FACE Standard - IDF Industrie Dial Face; Milano
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177211
ebay
ebay
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100-270 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

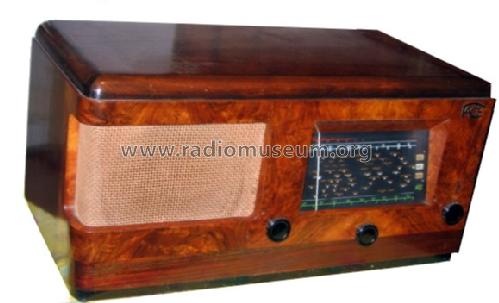

- Model: RM6 - FACE Standard - IDF Industrie
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 680 x 325 x 325 mm / 26.8 x 12.8 x 12.8 inch
- Notes
- Indicatore ottico di sintonia.
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Mentioned in

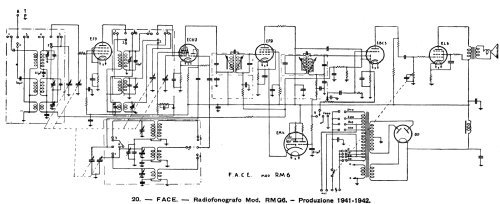

- -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
