• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39322

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

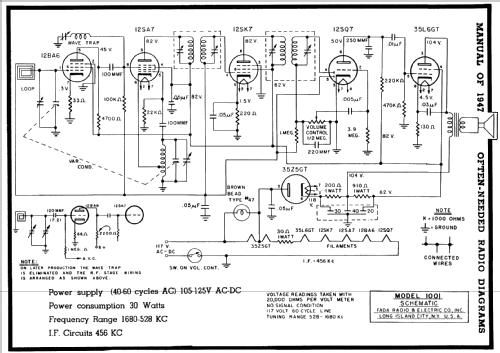

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1001 - Fada Radio & Electric Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.5 x 7 x 6.125 inch / 292 x 178 x 156 mm

• Notes
• Built-in loop antenna.

• Net weight (2.2 lb = 1 kg)
• 5.5 lb (5 lb 8 oz) / 2.497 kg

• Price in first year of sale
• 33.50 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

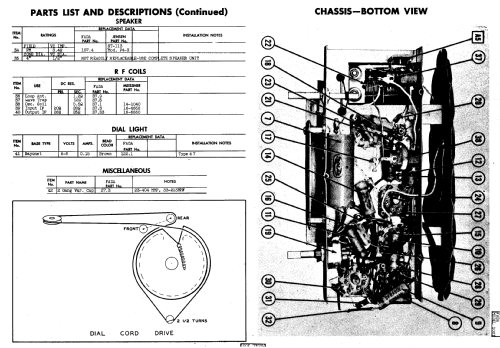

• Photofact Folder, Howard W. SAMS (Set 17, Folder 477-15)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (March 1946 page 19. April 1946 page 35. June 1946 page 13.)
