- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 310868
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

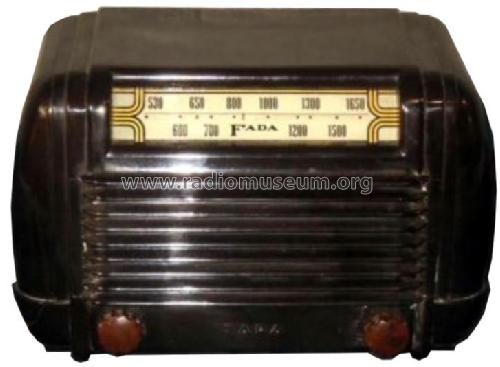

- Model: 1003 - Fada Radio & Electric Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
For schematic, see FADA model 1001.
- Author
- Model page created by Jay Kinnard. See "Data change" for further contributors.
