- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1941
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 122216
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

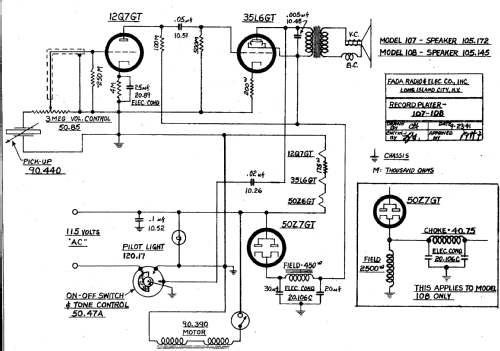

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 107 - Fada Radio & Electric Co.;
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Author
- Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
