- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39380
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- ZF/IF 456 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Material
- Bakelite case
- from Radiomuseum.org

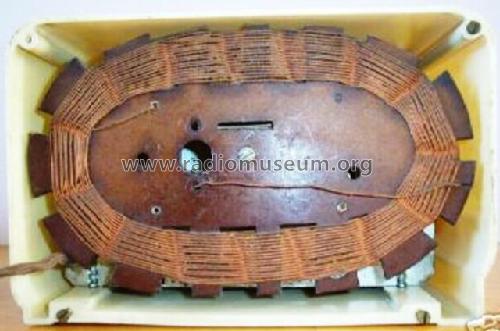

- Model: 148 [Early] - Fada Radio & Electric Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9.25 x 6 x 5.5 inch / 235 x 152 x 140 mm
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
