• Country
• Italy

• Manufacturer / Brand
• Fada Radio, Società meccanica La Precisa (LP); Napoli

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351896

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 6B7 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

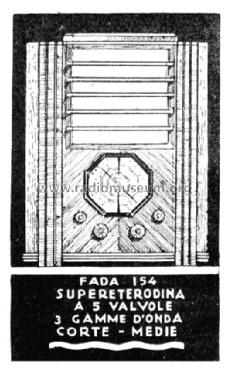

• Model: 154 - Fada Radio, Società meccanica

• Notes

• Regolatore di tono. Ingresso per giradischi.

• Mentioned in
• "Produzione 1934" indicata nello schema

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
