• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39398

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 76 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

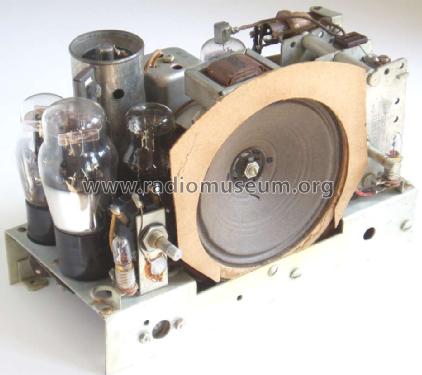

• Model: 155 - Fada Radio & Electric Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 210 x 140 mm / 11 x 8.3 x 5.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)
