• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88498

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

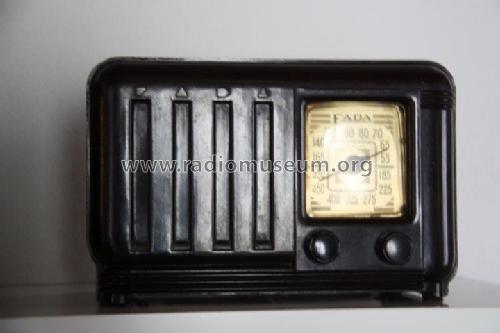

• Model: 209W - Fada Radio & Electric Co.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Color=walnut

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98 (page 78.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
