• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39569

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 24 24 24 27 45 45 80

• Main principle
• TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22.5 cm = 8.9 inch

• Material
• Wooden case

• from Radiomuseum.org

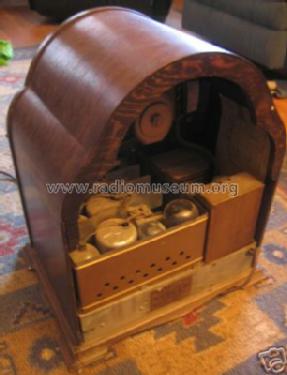

• Model: 43 Ch= KF - Fada Radio & Electric Co.;

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 400 x 450 x 300 mm / 15.7 x 17.7 x 11.8 inch

• Notes
• Bandfilter input, push-pull audio amplifier.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 108.)
