605B Ch= 2766B
Fada Radio & Electric Co.; Long Island (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347108
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

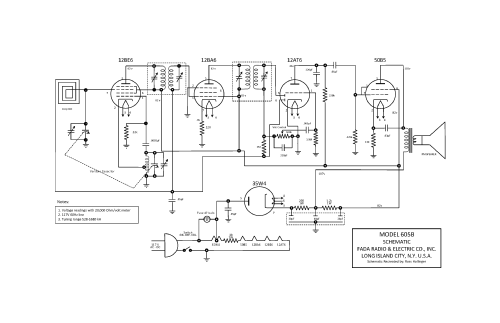

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 605B Ch= 2766B - Fada Radio & Electric Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 6 x 6 inch / 254 x 152 x 152 mm
- Notes
-
The earlier version with a different tube set is the Fada 605.
- Net weight (2.2 lb = 1 kg)
- 4.78 lb (4 lb 12.5 oz) / 2.170 kg
- Author
- Model page created by a member from USA. See "Data change" for further contributors.
