- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39685
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 90-110; 110-130 Volt
- Material
- Wooden case
- from Radiomuseum.org

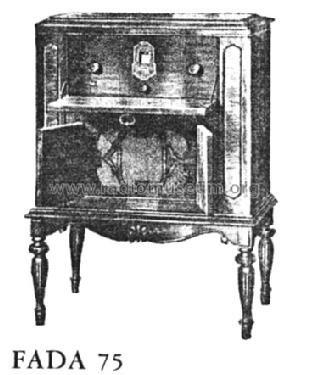

- Model: 75 - Fada Radio & Electric Co.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- One dial (primary tuning control knob) . Push-pull audio amplifier.
- Price in first year of sale
- 360.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (6th edition)
