- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 39694
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Various materials
- from Radiomuseum.org

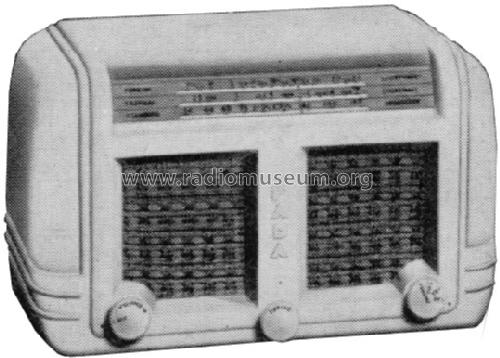

- Model: 777 - Fada Radio & Electric Co.;
- Shape
- Tablemodel, low profile (big size).
- Notes
- Material: Ivory Plaskon
Ballast Tube 117.22 105-125 Volt 117.35 135-160 Volt 117.36 210-245 Volt
- External source of data
- Ernst Erb
- Source of data
- Machine Age to Jet Age II
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 12, 1952
- Literature/Schematics (1)
- Rider's Perpetual, Volume 23 (last) = covering up to 1954
