• Country
• Italy

• Manufacturer / Brand
• Fada Radio, Società meccanica La Precisa (LP); Napoli

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30540

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6L6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 380 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 100-280 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

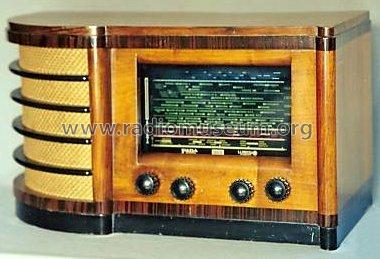

• Model: 851 - Fada Radio, Società meccanica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 340 x 300 mm / 23.6 x 13.4 x 11.8 inch

• Notes

• Indicatore ottico di sintonia al Neon.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
