• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 253310

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 36

• Valves / Tubes
• 3NP4_CRT 6BA6 6BA6 6AU6 6AL5 6AT6 6K6GT 6AG5 6AG5 6AG5 6AG5 6AL5 6AU6 6V6GT 6SK7 6SH7 6SN7GT 6J5 6K6GT 6SN7GT 6AL5 6K6GT 6AC7 6BG6G 6SN7GT 6J5 6K6GT 5V4G 5U4G 5U4G 5Y3GT 6SR7 6BG6G EY51 EY51 EY51 6J6 6J6 6J6

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

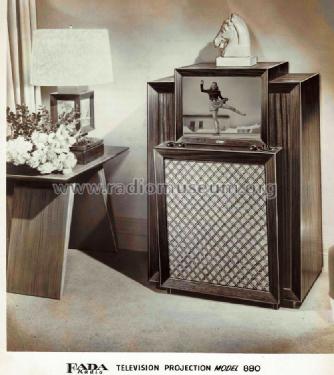

• Model: 880 - Fada Radio & Electric Co.;

• Shape
• Console with any shape - in general

• Notes

• 20" Projection TV Receiver

  Channels 2 thru 13


  tubes of FADA G-925 3 x 6J6 are included here

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Vol. 10/50 95A-5 Set 95A Folder 5)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
