• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39752

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

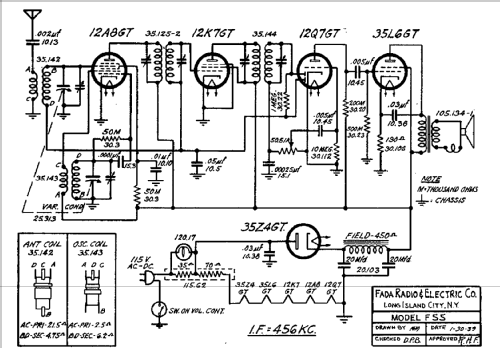

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

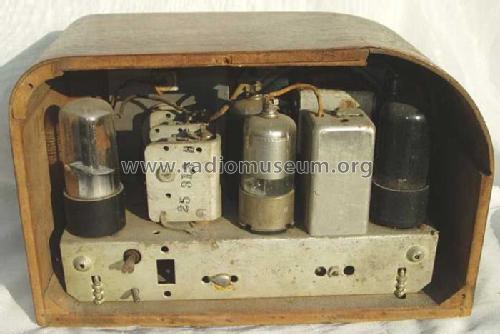

• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F-55T [Early] - Fada Radio & Electric Co.;

• Shape
• Tablemodel, with any shape - general.

• Notes

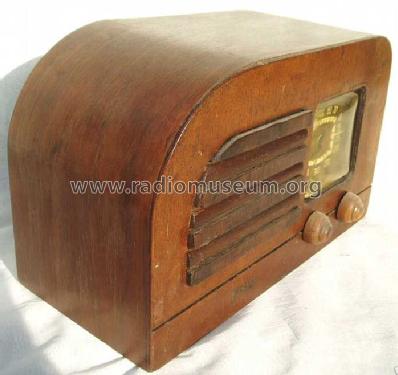

• In Burl Walnut cabinet.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (3)
• Fada Folder AD 250-B for 1940.

• Other Models

• Here you find 760 models, 449 with images and 531 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
