- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 248221
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 31
- Valves / Tubes
- 6J6 6J6 6J6 6AG5 6AG5 6AG5 6AG5 6AL5 6AU6 6V6GT 6BA6 6BA6 6AU6 6AL5 6AT6 6K6GT 6SK7 6SH7 6SN7GT 6J5 6K6GT 6AL5 6AC7 6K6GT 6BG6G 5V4G 1B3GT 1B3GT 5U4G 5U4G 15AP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-925 - Fada Radio & Electric Co.;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
AC Operated Television receiver
15" B/W CRT USA standard
Channels 2 thru 13
- Mentioned in

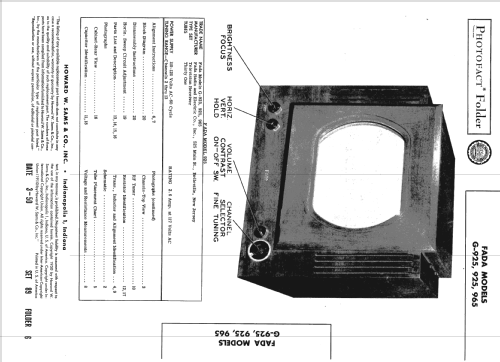

- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 3-50 89-6 Set 89 Folder 6)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
