• Country
• United States of America (USA)

• Manufacturer / Brand
• Fada Radio & Electric Co.; Long Island (NY)

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39785

• • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

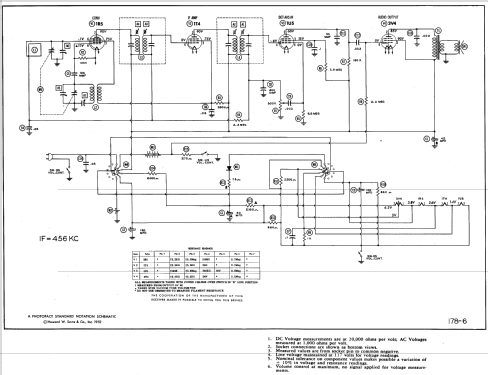

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1U5 or 1S5 3V4 or 3S4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 117V =110-120/ 67.5 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

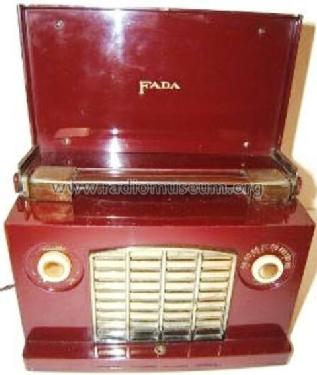

• Model: P111 - Fada Radio & Electric Co.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Fada model P111 is a three power portable AM superheterodyne receiver. Selenium rectifier.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-52, Set 178, Folder 6)
