- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 353597
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

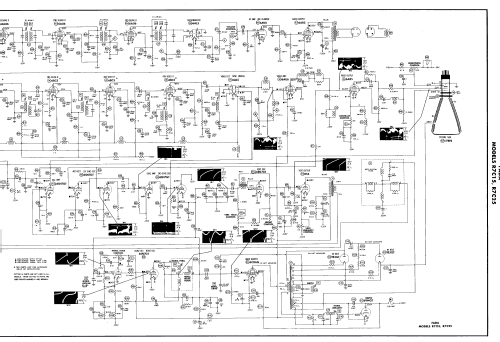

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 27
- Valves / Tubes
- 6AG5 6J6 6BC5 or 6AG5 6BC5 or 6AG5 6BC5 or 6AG5 6BC5 or 6AG5 6AL5 6AU6 6AR5 6SN7GT 6SN7GT 6AU6 6AU6 6AU6 6AL5 6AV6 6AR5 6SN7GT 6S4 6SN7GT 6CD6G 6W4GT 1B3GT 1B3GT 5U4G 5U4G 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: R7C15 - Fada Radio & Electric Co.;
- Shape
- Chassis only or for «building in»
- Notes
-
Fada model R7C15 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis VHF tuner TV-201 and picture tube 17BP4.
- Literature/Schematics (1)

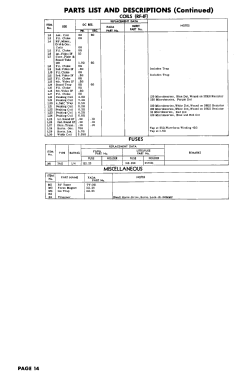

- Photofact Folder, Howard W. SAMS (Set 158, folder 3, dated 1-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
