RP-65-CA

Fada Radio & Electric Co.; Long Island (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1927–1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39822
    • alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Neutrodyne
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RP-65-CA - Fada Radio & Electric Co.;
  • Shape
  • Chassis only or for «building in»
  • Notes

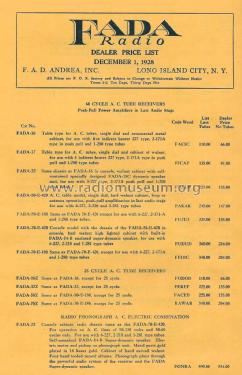

  • One dial (primary tuning control knob) . Requires external AC power supply model "C". This chassis for "Special" AC receivers shares the same schematic for 265-UA (chassis RP-65-UA) or 265-CA (chassis RP-65-CA) and 262-UA (chassis RP-62-UA) or 262-CA (chassis RP-62-CA). The FADA dealer price list of December 1st 1928 mentiones the FADA RP-65 as FADA Special, chassis only, mounted on 9 x 19 panel - for a dealer price of 32.40 $ and end price 54 $ without tubes - but still a reduced price.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
