- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349570
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6CB6 6J6 6AU6 6AU6 6CB6 or 6AU6 6AL5 6AC7 6AU6 6T8 6K6GT 12AU7 6SN7GT 6S4 6AL5 6SN7GT 6AU5 6W4GT 1V2 1V2 5U4G 14CP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S4T30 - Fada Radio & Electric Co.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Fada model S4T30 is a 14” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner 112850 and picture tube 14CP4.
- Literature/Schematics (1)

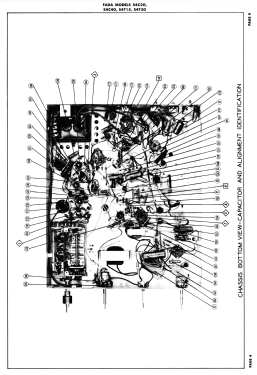

- Photofact Folder, Howard W. SAMS (Set 142, folder 8, dated 8-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
