• Country
• Italy

• Manufacturer / Brand
• Fada Radio, Società meccanica La Precisa (LP); Napoli

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30536

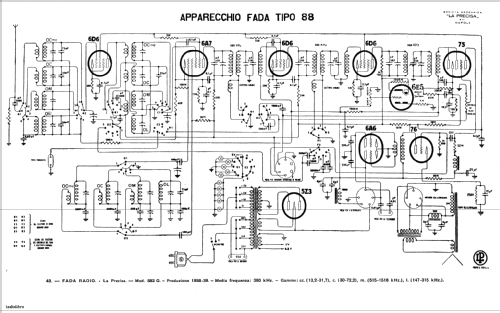

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6D6 6A7 6D6 6D6 6E5 75 6A6 76 5Z3

• Main principle
• Superheterodyne (common); ZF/IF 380 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 100-280 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiofonografo 883G Ch=88 - Fada Radio, Società meccanica

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Indicatore di sintonia (Occhio magico: 6E5).
  Controllo di tono a 5 posizioni.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• -- Original prospect or advert (L'Antenna 28 febbraio 1939)

• Literature/Schematics (3)
• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

• Literature/Schematics (4)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
