- Country
- United States of America (USA)
- Manufacturer / Brand
- Andrea Radio Corp.; Long Island (NY)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32722
-
- Brand: Deresnadyne
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105 - 130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: T-U15 - Andrea Radio Corp.; Long
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12 x 8.5 x 6.5 inch / 305 x 216 x 165 mm
- Notes

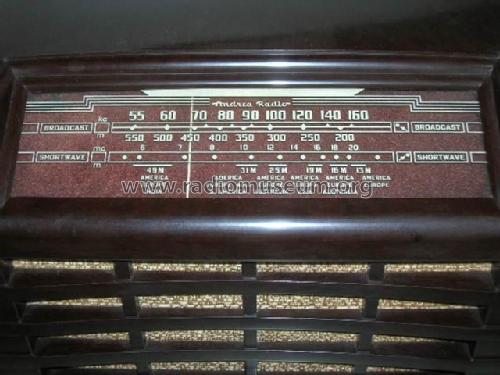

- Tuning 545 to 1700 kc on standard and 5.85 to 22.5 on short wave.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 24, Folder 4714-7)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (June 1947 page 51.)
