- Country
- United States of America (USA)
- Manufacturer / Brand
- Fada Radio & Electric Co.; Long Island (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 300207
-
- alternative name: Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich

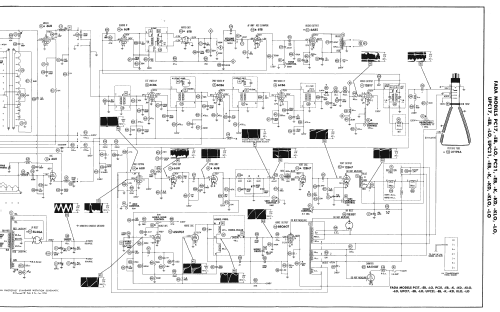

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6AF4 6BZ7 6U8 6CB6 6CB6 6CB6 12BY7 6U8 6U8 6T8 6AR5 12BH7 6BQ6GT 6AX4GT 1B3GT 5U4GA 21YP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: UPC21K - Fada Radio & Electric Co.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Fada model UPC21K is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-UHF tuner 42.98 and picture tube 21YP4A.
- Literature/Schematics (1)

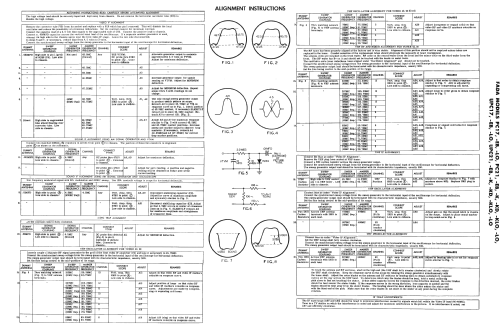

- Photofact Folder, Howard W. SAMS (Set 296 Folder 5 dated 6-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
