• Country
• Germany

• Manufacturer / Brand
• FAG Funk-Apparatebau Willi Nicolei; Chemnitz

• Year
• 1930 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 109196

• • alternative name: Funkapparatebau

• Number of Tubes
• 1

• Valves / Tubes
• RGN354

• Wave bands
• - without

• Details
• Power: B-Battery Eliminator

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

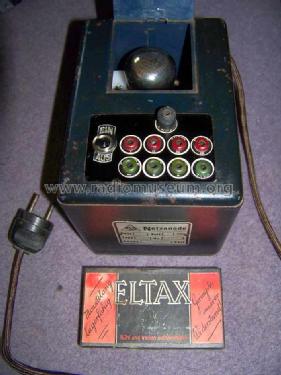

• Model: Netzanode NW1 - FAG Funk-Apparatebau Willi

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 130 x 140 x 180 mm / 5.1 x 5.5 x 7.1 inch

• Notes
• Netzanode für 180 V sowie diverse Gitterspannungen. 4 verschiedene Anodenspannungen und 3 Gitterspannungen über eingebaute Gitterbatterie: 4,5V, 6 V und 7.5V

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
