• Country
• Spain

• Manufacturer / Brand
• Fagor Electrónica; Aspes; Mondragón, Guipúzcoa

• Year
• 1967 ?

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 296216

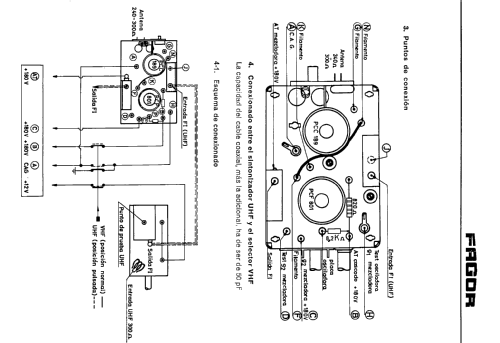

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PCC189 PCF801

• Main principle
• RF Converter/Adapter (not voltage converter); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / DC: 180 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: VHF Selector de Canales. Channel Selector. Tuner Rotomatic B204 - Fagor Electrónica; Aspes;

• Shape
• Chassis only or for «building in»

• Notes

• Selector rotativo de canales VHF para bandas I y III de TV.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
