VHF/UHF Selector de Canales. Channel Selector. Tuner SDF 40 E

Fagor Electrónica; Aspes; Mondragón, Guipúzcoa

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 296218

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • RF Converter/Adapter (not voltage converter); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC: 12; 11 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: VHF/UHF Selector de Canales. Channel Selector. Tuner SDF 40 E - Fagor Electrónica; Aspes;
  • Shape
  • Chassis only or for «building in»
  • Notes

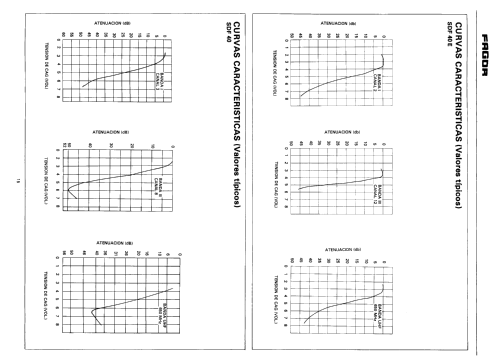

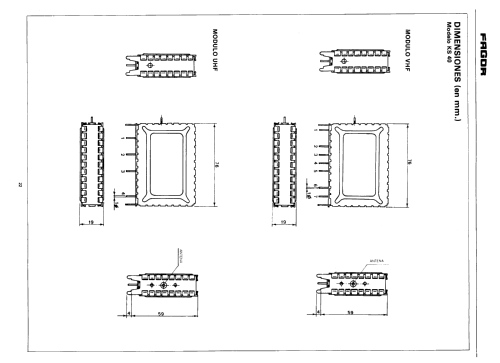

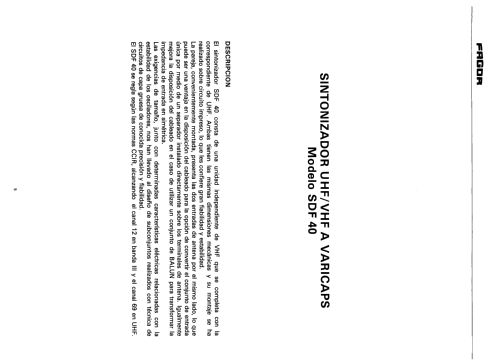

  • Sintonizador UHF/VHF a varicaps para antena de Z= 75 Ω, formado por dos cajas metálicas idénticas que contienen respectivamente la parte VHF y UHF.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
