• Country
• United States of America (USA)

• Manufacturer / Brand
• Fairbanks, Morse & Co.; Chicago (IL)

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117112

• • alternative name: FMC
  • Brand: Welco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

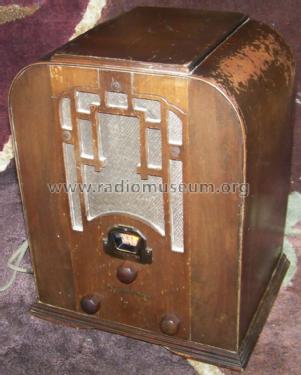

• Model: 5107 Ch= 51 - Fairbanks, Morse & Co.;

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
