7146 Ch= 71
Fairbanks, Morse & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fairbanks, Morse & Co.; Chicago (IL)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192744
-
- alternative name: FMC
- Brand: Welco

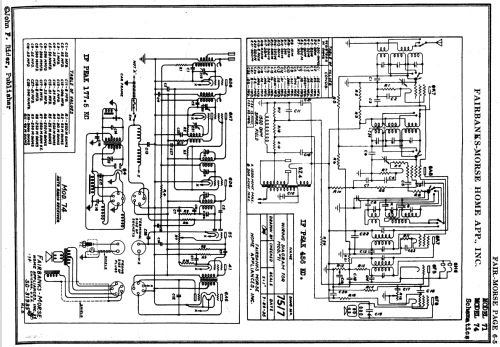

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / Either transformer: 50 to 60 cycles, 110V or 40 to 60 cycle, 110V or 25 cycles, 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 7146 Ch= 71 - Fairbanks, Morse & Co.;
- Shape
- Console with any shape - in general
- Notes
-
The Fairbanks Morse 7146 is an AC operated, 7 tube BC, Police and SW band receiver. Uses chassis 71. Has AGC, RF stage and 2 stage audio circuit. Was available with 3 different power transformers.
NOTE: 71 is the chassis number and NOT the model number.
The following models use the same chassis:
Model Number Chassis Cabinet 7117 71 Table Model 7146 71 Console According to "Radio Retailing" Nov. 1935 the following upright table models were offered as new: 4015, 5619, 6616, F-M 7117, 9018, 4115, 6416 and "down-to-the-floor construction" consoles 5645, 6645, 7146, 9047 and 9048 plus the battery model 6445B.
- External source of data
- Radio Retailing November 1935 Page 40
- Source of data
- Pre-War Consoles
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (Riders (Fairbanks Morse) 6-5)
- Literature/Schematics (2)
- Rider's Perpetual, Volume 7 = 1936 and before (Riders (Fairbanks Morse) 7-9, 7-14)
- Literature/Schematics (3)
- Radio Today (and Television) (March 1937, Page 49 Lists just IF - and Radio Retailing Nov. 1936, page 40)
- Literature/Schematics (4)
- Gernsback Official Radio Service Manual (Volume 6= 1936 , Page 387)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 147 models, 87 with images and 117 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Fairbanks, Morse & Co.; Chicago (IL)
