• Country
• United States of America (USA)

• Manufacturer / Brand
• Fairchild Camera and Instrument Corp.; Clifton, N.J.

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 250570

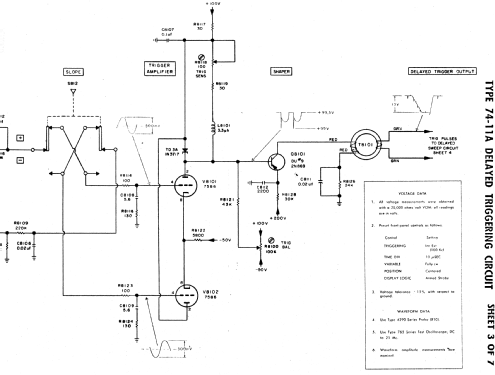

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Delaying Sweep plug-in for Oscilloscopes 74-11A - Fairchild Camera and

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 100 x 147 x 310 mm / 3.9 x 5.8 x 12.2 inch

• Notes

• The Delaying Sweep Type 74-11A is a plug-in for Bench Model Type 766H and Rack-Mounted Modell Type 767H and Portascope 765H and Militarized Portascope 765MH.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
