Charleville Five-Valve Cat. No. W 90454

Efescaphone (Brand), Falk, Stadelmann & Co. Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1924/1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273650
    • Brand: Efescaphone

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • TRF with regeneration; 3 AF stage(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Horn
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Charleville Five-Valve Cat. No. W 90454 - Efescaphone Brand, Falk,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 30 x 55 x 16 inch / 762 x 1397 x 406 mm
  • Notes

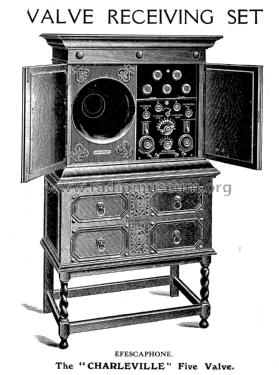

  • The "Charleville" Five Valve Receiving Set. The "Charleville" incorporates a frame aerial in one of its doors, enabling Loud Speaker reception up to five miles from Broadcasting Station without outside aerial or earth wires.

    Comprising one High Frequency Stage, one Detector and three Low Frequency (audio) Stages.

    Wave length range 150 to 4000 meters.
  • Price in first year of sale
  • 80.00 £
  • Mentioned in
  • - - Manufacturers Literature (1924 Efescaphone Wireless catalog page 11)
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
