Four-Valve Set Cat. No. W 90554
Efescaphone (Brand), Falk, Stadelmann & Co. Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Efescaphone (Brand), Falk, Stadelmann & Co. Ltd.; London
- Year
- 1924/1925
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 273640
-
- Brand: Efescaphone

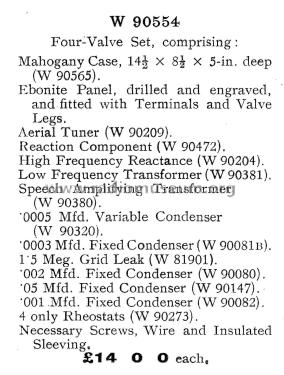

1924 Efescaphone Wireless catalog page 13
1924 Efescaphone Wireless catalog page 13
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Four-Valve Set Cat. No. W 90554 - Efescaphone Brand, Falk,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 11.4 x 5 x 8.5 inch / 290 x 127 x 216 mm
- Notes
-
Four-Valve kit set. All parts included including drilled and engraved panel.
- Price in first year of sale
- 14.00 GBP
- Mentioned in
- - - Manufacturers Literature (1924 Efescaphone Wireless catalog page 13)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
- Other Models
-
Here you find 71 models, 65 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
