• Country
• United States of America (USA)

• Manufacturer / Brand
• Fanon-Masco Long Island City, New York

• Year
• 1948 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 73535

• • alternative name: Fanon Electronics, Electronic Sales

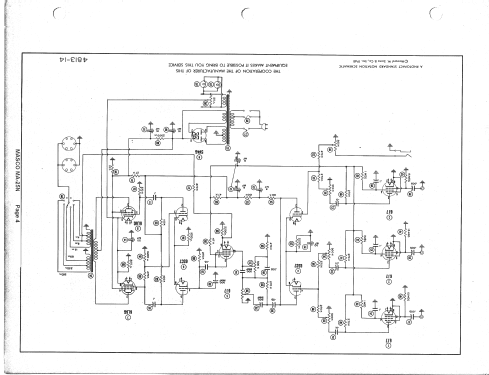

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6J7 6J7 6J7 6J7 6SC7 6SC7 6L6G 6L6G 5V4G

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Material
• Metal case

• from Radiomuseum.org

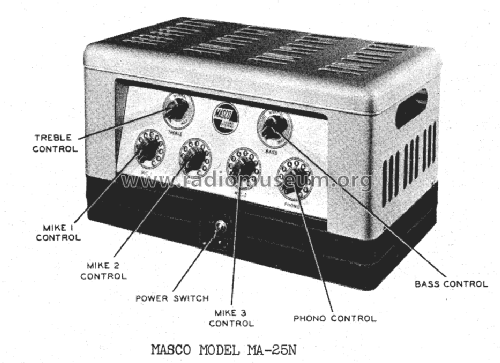

• Model: Masco MA25N - Fanon-Masco Long Island City,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 380 x 215 x 220 mm / 15 x 8.5 x 8.7 inch

• Notes

• 25 Watt NF Verstärker. This model is also one of the manufacturer Mark Simpson Mfg. Co Inc., Long Island City, New York.

  AC Operated 4 Channel Audio Amplifier

• Net weight (2.2 lb = 1 kg)
• 11.6 kg / 25 lb 8.8 oz (25.551 lb)

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol.5 8/48 4813-14 Set 43 Folder 14)

• Author
• Model page created by Alexander Küffer. See "Data change" for further contributors.
