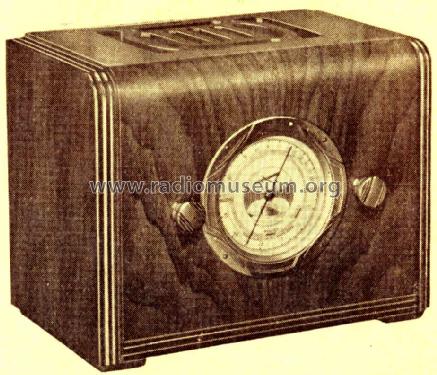

AD153 Globe Trotter
Fansteel Products (Pfanstiehl, Pfansteihl, Balkite, Balkeit); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fansteel Products (Pfanstiehl, Pfansteihl, Balkite, Balkeit); Chicago
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251903
-
- alternative name: Balkeit || First National
- Brand: Overtone
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AD153 Globe Trotter - Fansteel Products Pfanstiehl,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.5 x 8.5 x 6.25 inch / 267 x 216 x 159 mm
- Notes
-
3" Dial (colored).
- Price in first year of sale
- 19.95 $
- Literature/Schematics (3)
- Folder: The Balkeit Globe Trotter 1936 Series.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 131 models, 74 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Fansteel Products (Pfanstiehl, Pfansteihl, Balkite, Balkeit); Chicago
