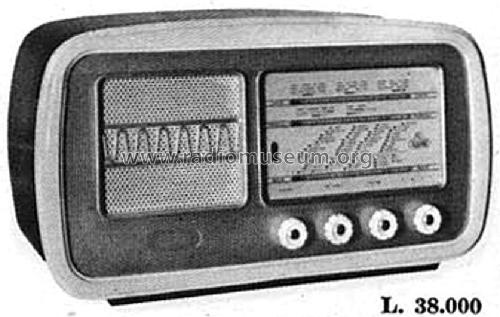

Saturno 563T
FAR (F.A.R.) Serena; Milano
- Country
- Italy
- Manufacturer / Brand
- FAR (F.A.R.) Serena; Milano
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122571
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Saturno 563T - FAR F.A.R. Serena; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 280 x 210 mm / 21.3 x 11 x 8.3 inch
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 38,000.00 ITL
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- Catalogo ANIE (1956-57)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 42 models, 30 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from FAR (F.A.R.) Serena; Milano
