Farfisa 20 F/20(a)

Farfisa, Fabbriche Riunite di Fisarmoniche; Osimo

Data
Forum
Pictures
Collections

  • Year
  • 1967 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 275839

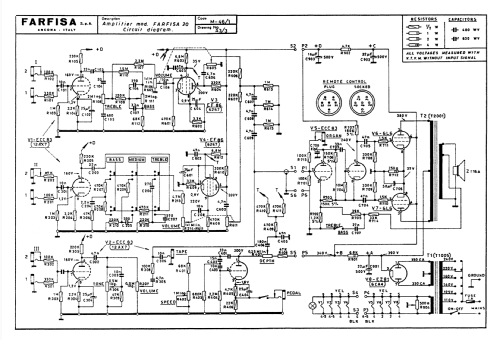

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Guitar Amplifier
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Farfisa 20 F/20 - Farfisa, Fabbriche Riunite di
  • Shape
  • Tablemodel, with any shape - general.
  • Literature/Schematics (1)
  • -- Schematic

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Farfisa, Fabbriche: Farfisa 20 F/20

Threads: 1 | Posts: 5

Hi!

I need some help, please! 🙂

Last night I'm trying to repair an old Farfisa F20: but I don't know which valves it mounts: EL34 OR 6L6?

Not finding diagrams on the web, I looked at the photos of the amplifier on the net: practically in all the photos the amp mounts the 6L6 I did some tests:

If I mount the EL34 the amp crackles, rustle and after a while the resistors break (I think safety, there is no fuse);

If I mount the 6L6, it crackles much less but after a while I noticed that in correspondence with the crackles I see some sparks and smoke from the output transformer. Of course I turned it off right away, I didn't do any damage.

This morning, I've found a wiring diagram; in which the 6L6 is confirmed. However, the problem of crack, bop, etc. remains ... and the problem of the transformer that makes sparks and smoke also remains. What can be the cause? Can you give me some advice?



Thank you!

Best regards, Alessio

Alessio Fantinato, 28.Mar.23
